Description

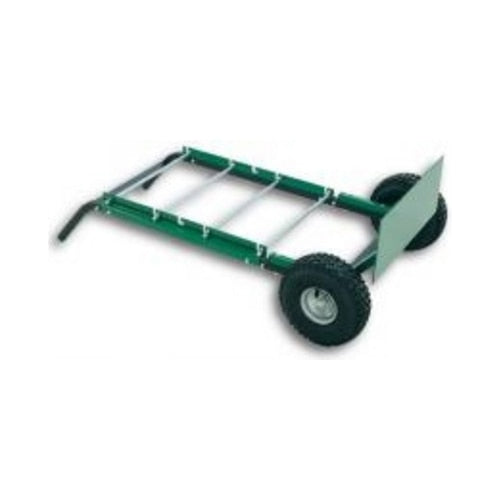

Greenlee 9505 Features
- Holds up to 12 spools of #12 AWG wire or 8 spools of #10 AWG wire.
- 10" (254 mm) diameter pneumatic tire for jobsite portability.
- Pinless design eliminates loose parts.
- 4 solid steel 1/2" (12.7 mm) spindles included.
- Lay cart flat when dispensing wire. Upright for use as hand caddy.
Greenlee 9505 Specifications
| Size: | 46-5/8" (1180 mm) long x 28-1/4" (71.8 mm) wide |
| Capacity - Maximum Total Spool Weight: | 200 lbs. (90.7 kg) 4000' (1219.2 m) #10 AWG wire |
| Capacity - Maximum Spool Diameter: | 7.5" (190 mm) |
| Capacity - Dolly Lift (Maximum): | 250 lbs. (113.4 kg) |
