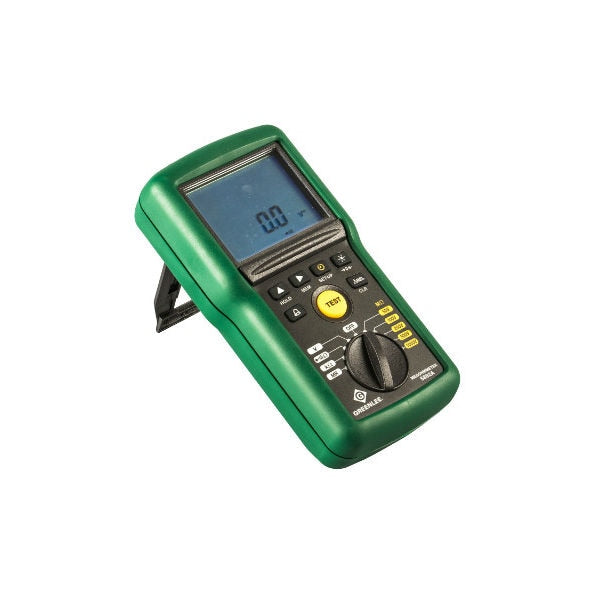

Greenlee 5882A 1kV Megohmmeter/Insulation Tester


Price:
Sale price$ 752.27 Regular price$ 933.00

Description

INCLUDES:
• (1) Megohmmeter 1kV
• (2) Red & Black Leads
• (2) Red & Black Test Alligator Clips
• (1) Black Test Probe

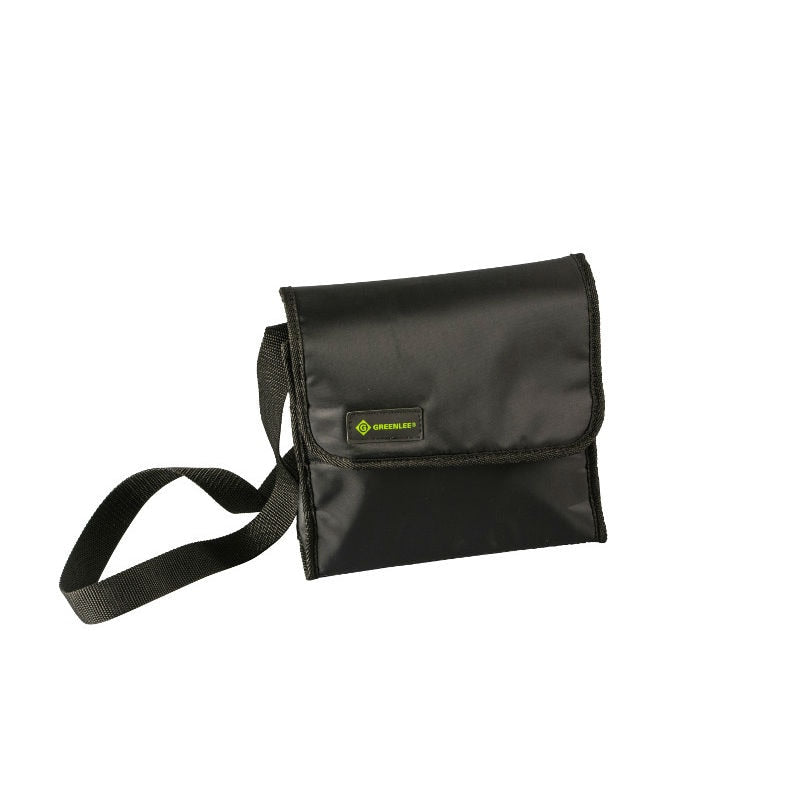

• (1) Carrying Case with Shoulder Strap
• (1) Manual
• (6) Batteries

FEATURES:
• Calculations (automatic)
• Potential Index and Dielectric Absorption Ratios
• Tests Continuity, Resistance and Frequency Measurements
• Programmable Alarms
• Insulation Test, Resistance, Continuity
• Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
• Delta Reading "ΔREL"
• Data hold with 300 Entry Memory
• Standby Mode (automatic),saves battery power
• Hand Held, Compact Light Weight Form
• Intuitive Layout with Rotary Function Selector and Large Test Button
• Molded in Magnetic Mount for convenient hands-free measurements
• Limited Life Time Warranty

SPECIFICATIONS:

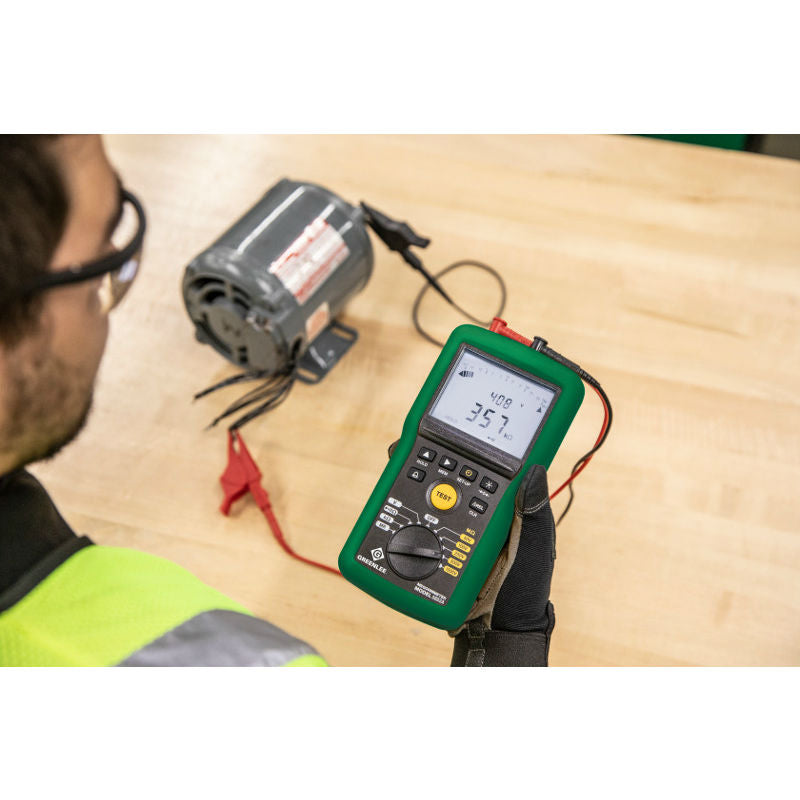

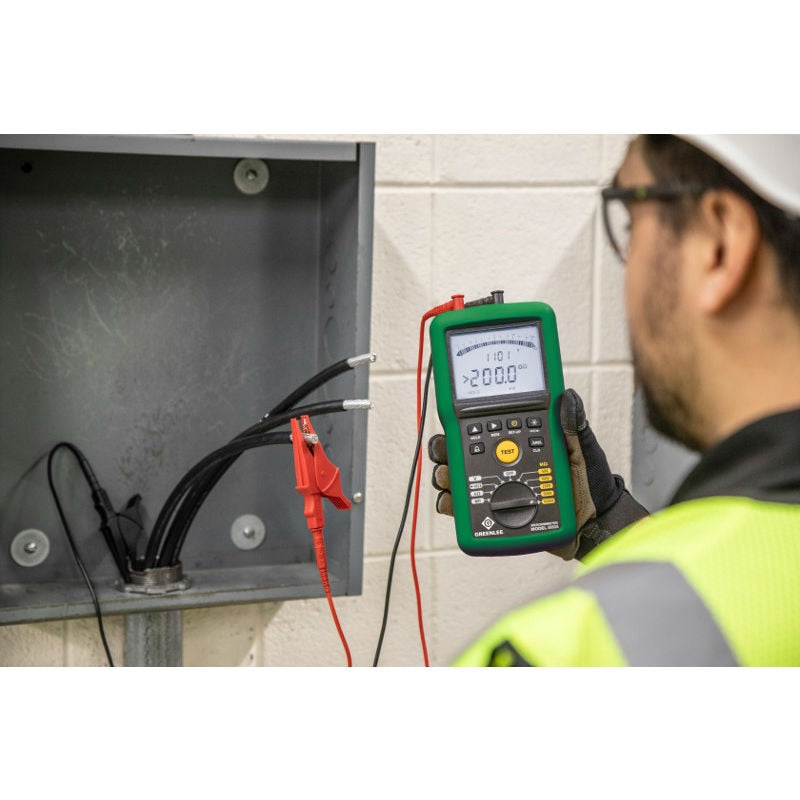

• Applications: Insulation Testing and Cable and Rotary Equipment
• Automatic Discharge: Yes [on completion of insulation test]
• Continuity Range: <100Ω
• Display: LCD: Large/ Bright, easy to read. Analog Bar Graph and Digital.
• Measurement Category : 1kV
• Range : 10kΩ to 200GΩ
• Replacement Parts: 5882A Test Lead Kit, 1kV Megohmmeter. 5882A Carrying Case, 1kV Megohmmeter.
• Type: Hand Held
• WEIGHT: 1.07 lbs
• PRE-SET TEST VOLTAGES: 50V, 100V, 250V, 500V, 1kV
• RESISTANCE MEASUREMENT: 0 to 4MΩ
• FREQUENCY MEASUREMENT: 15.3 to 800Hz
• VOLTAGE MEASUREMENT: .3 to 700V
• OPERATING TEMPERATURE: -4F to 131F
• STORAGE TEMPERATURE: -22°F – 176 °F
• CONTINUITY CHECKING: >100Ω
• SAFETY VOLTAGE RATING: CAT IV, 600V
• WARRANTY: Lifetime Limited
• STANDBY MODE: After 5 Minutes of Inactivity
• BATTERY POWER SUPPLY: Six 1.5V AA
