Description

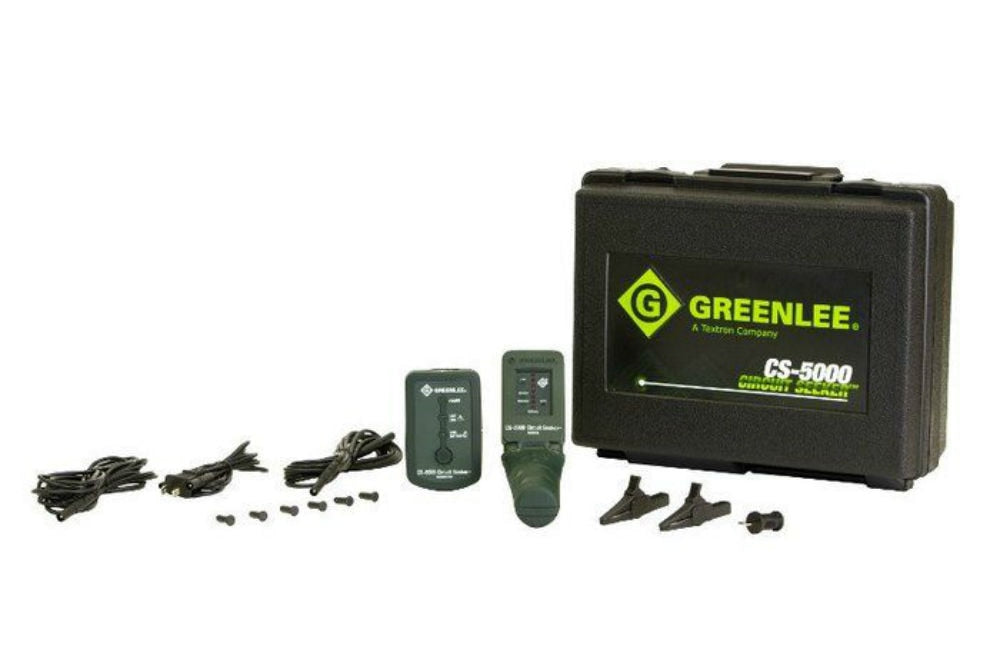

Greenlee CS-5000 Includes
- (1) Transmitter
- (1) Receiver
- (2) Alligator Clips
- (1) AC Blade
- (1) AC Plug Adapter
- (2) Extension Leads
- (1) Carrying Case
Greenlee CS-5000 Features
- Superior sensitivity and functionality providing accurate tracing and locating
- Auto Gain Option – Automatically seeks the strongest signal identifying the target breaker, improving locating accuracy
- Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing
- Rated for 600VAC/DC
- Works on de-energized circuits, no need to have to have the power on
- Works on live circuits without disrupting service
- Front facing LED linear array receiver display promotes good working posture reducing hand strain
- Handle design creates comfortable, easy grasp to reduce hand fatigue
- Dual Notification: Visual (bright LEDs) and distinctive audio tone, assist the operator in challenging work environments
- Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
Greenlee CS-5000 Specifications
Voltage Rating | 600V AC/DC |
Tracing Range Open Line Mode | Up to 3 m (10 ft) with a metallic connection to ground; 0.3 to 0.9 m (1 to 3 ft) with a capacitive ground reference |
Tracing Range Live Line Mode | Up to 6 m (20 ft) from circuit |
Auto Power Off Intervals (Transmitter) | 4 Hours |
Auto Power Off Intervals (Receiver) | 30 minutes without signal |
Operating Conditions | (32 ºF to 122 ºF)Battery Type |
