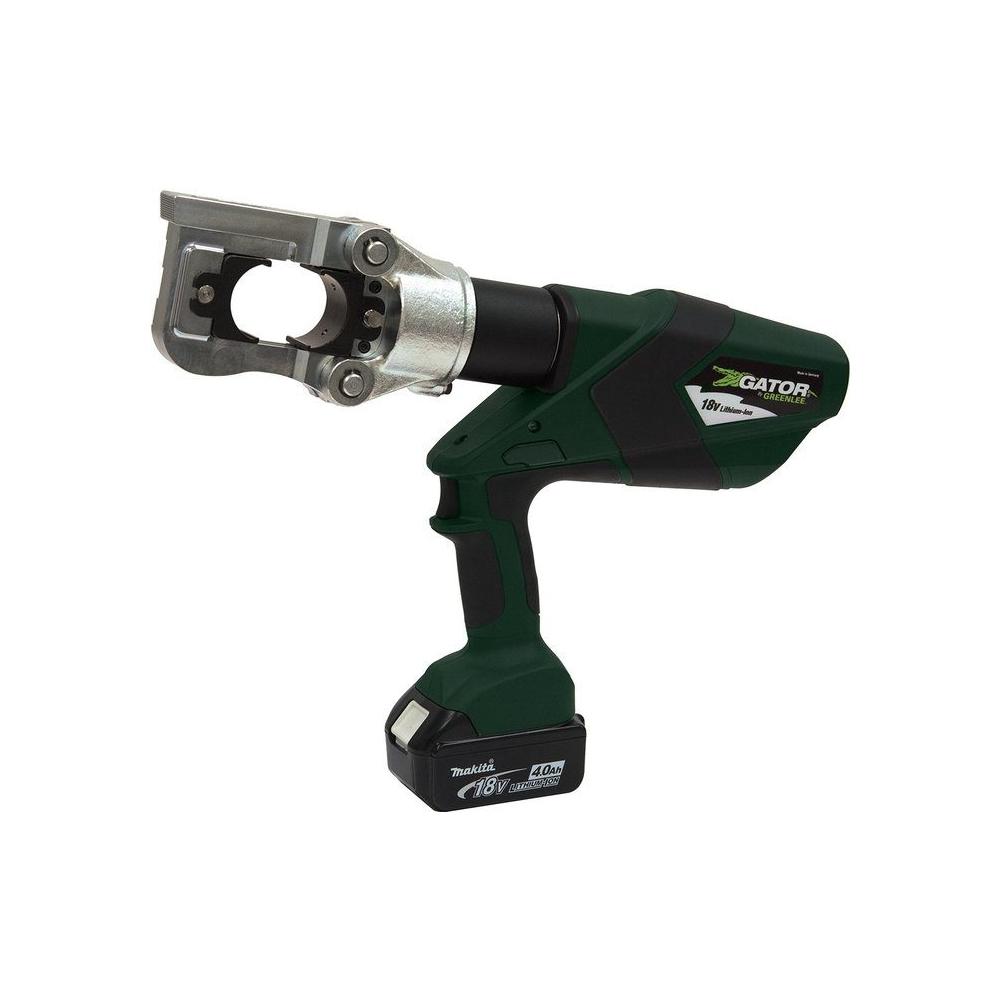

Greenlee E12CCXLX11 12 Ton Crimping/Cutting Multi Tool, Li-Ion, Standard, 120V

Sale price$ 5,913.68 Regular price$ 6,069.00
Only 5 units left


• (1) 12 Ton Crimping/Cutting Multi Tool, Li-Ion, Standard, 120V

• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18 V Lithium Ion (Li-Ion) battery provides 70% more cycles per charge and faster cycle times
• Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and then the tool repeats the retraction for subsequent crimps
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Available with 120 V, 12 V or 230 V battery charger or with 120 V or 230 V corded adapter in place of batteries and charger use optional CCX Blades and adapters.
• U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson®, Blackburn®, FCI Burndy®, ILSCO®, Panduit®, Penn-Union® and Thomas& Betts® color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. The tools also accept all industry U type dies. These tools drive knockout punches through 5-5/8" diameter.

• Sub Brand: Gator
• Type: Die style crimper/cutter
• Application: 12 Ton Crimping/Cutting
• Standard: C/US UL Listed
• Wire Size: 8 AWG - 750 Kcmil Cu & Al
• Overall Length: 16.5" (420mm)
• Crimping Force: 24,000 lbs (106 kN)
• Crimping Capacity: 750 Kcmil (MCM) Cu & Al
• Connector Type: Color-coded lugs and splices
• Handle Type: Pistol Style with over molded rubber grip

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
