Description

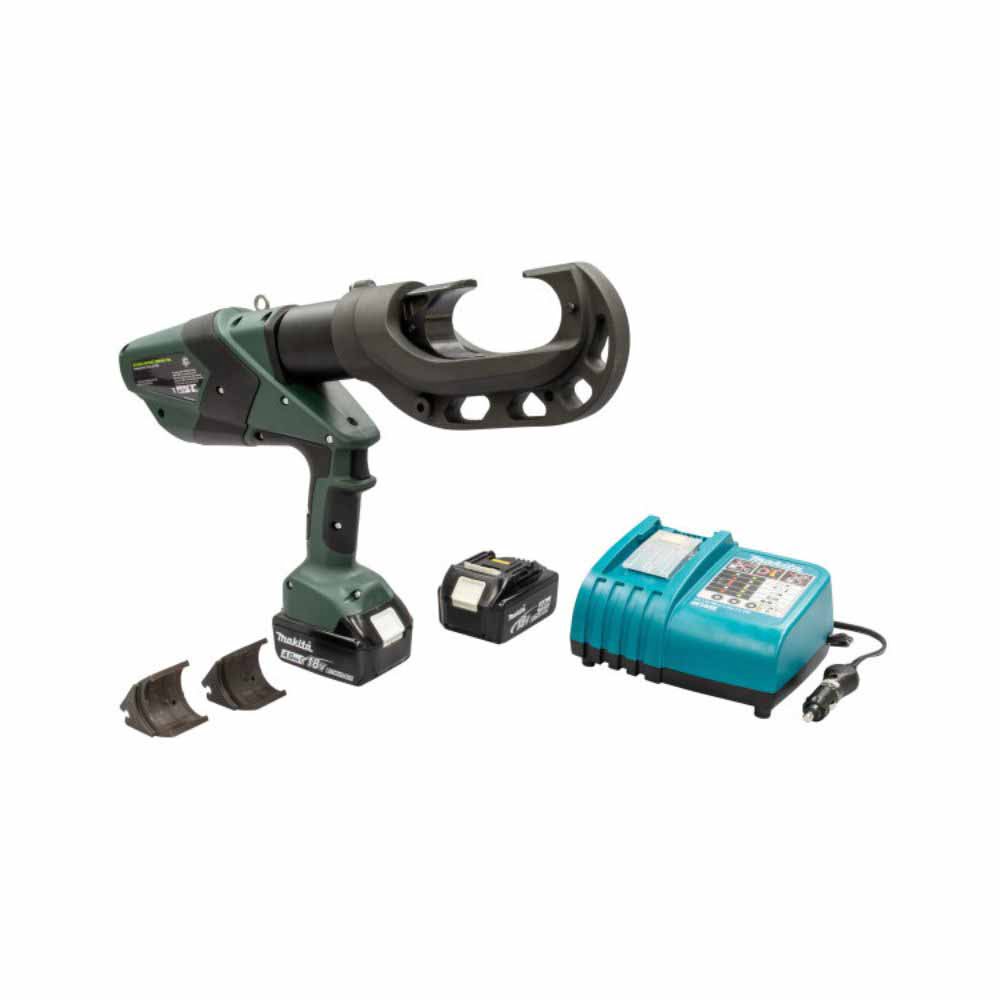

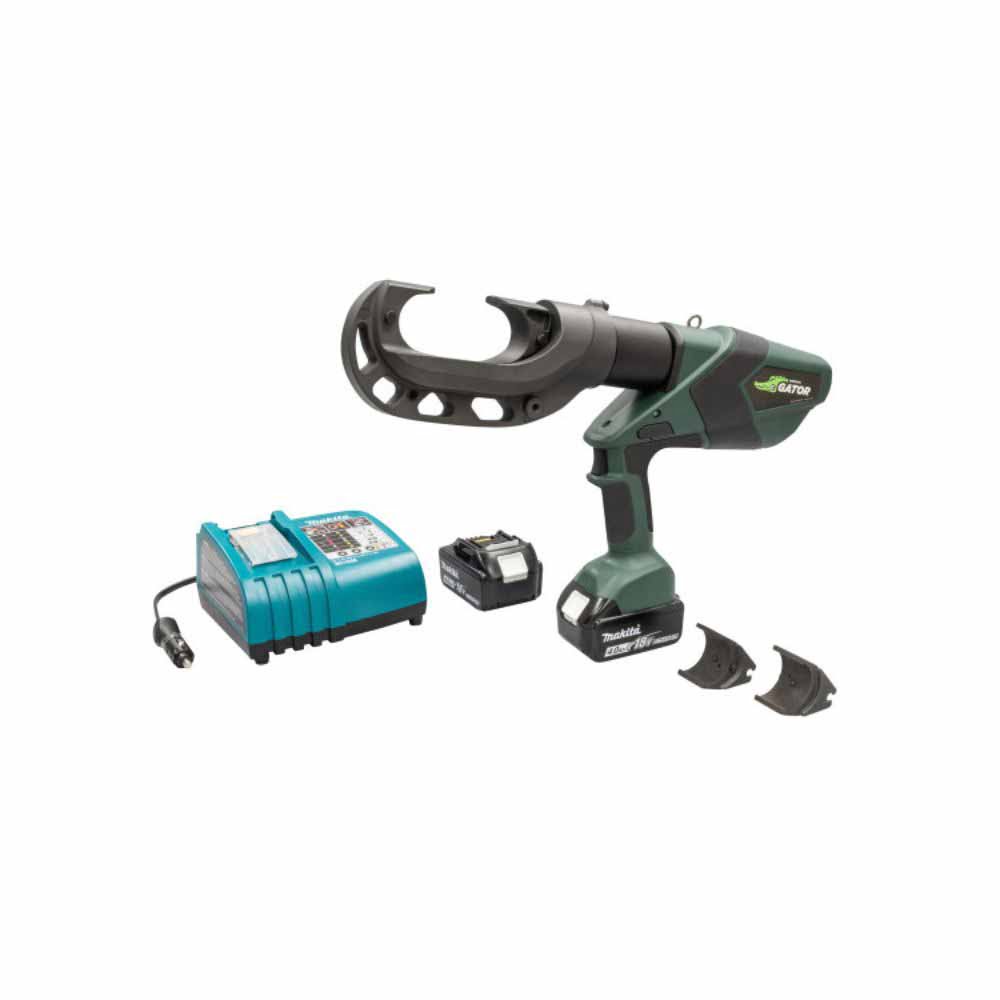

INCLUDES:
• (1) Crimper
• (1) U Die Adapter
• (2) Batteries
• (1) Charger
FEATURES:
• The Greenlee Gator EK1550SLX features an open-head configuration for easy loading of conductor and connector.
• SLX crimping head offers over 10% reduction in weight vs previous model
• Utilizes "P" and "U" style crimping dies
• This cable crimper comes equipped with Bluetooth™ Communication
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• Two-stage hydraulic system provides fast advance and power speed, saving time
• Includes auxilary handle for easy operation and transport
SPECIFICATIONS:
• Length: 19.5"
• Width: 3"
• Height: 12.5"
• Crimping Force:15 Tons (135 kN)
• Head Rotation: 350º
• Type: Die Style Crimper
• Wire Size: 8 AWG - 1500 kcmil Cu
• Wire Size: 8 AWG - 1250 kcmil Al
• Crimping Force: 30000 lbs (135 kN)
• Crimping Capacity: 1500 kcmil (MCM) Copper
• Crimping Capacity: 1250 kcmil (MCM) Al
• Connector Type: Color-Coded Lugs and Splices
• Handle Type: Pistol Style with Over Molded Rubber Grip
• Min Operating Temperature: 1 F / -17.22222 C
• Max Operating Temperature: 104 F / 40 C
• Color: Green
• Shape: Pistol
• Materials: Steel, Plastic, Aluminum
• Power Source: Battery Powered
• Capacity Max: 15" / 381 mm
• Connectivity-1 (Bluetooth, WiFi): Yes
• Motor Type: DC Brushed Permanent Magnet
• Voltage: 18V
• Battery Composition: Lithium Ion
• Battery: 18V, 4.0 Ah
• Batteries Included: Yes
• Batteries Required: Yes
• Charger: 12V
• Sub Brand: Gator
• Application: 15 Ton Crimping
• Standard: C/US UL Classified
• Weight: 15.9 lbs
The EK1550SLX crimping tool is a battery-powered, C-head and pistol grip configured tool intended to crimp aluminum and copper connectors onto electrical cable.
• (1) Crimper
• (1) U Die Adapter
• (2) Batteries
• (1) Charger
FEATURES:
• The Greenlee Gator EK1550SLX features an open-head configuration for easy loading of conductor and connector.
• SLX crimping head offers over 10% reduction in weight vs previous model
• Utilizes "P" and "U" style crimping dies
• This cable crimper comes equipped with Bluetooth™ Communication
• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• Two-stage hydraulic system provides fast advance and power speed, saving time
• Includes auxilary handle for easy operation and transport
SPECIFICATIONS:
• Length: 19.5"
• Width: 3"
• Height: 12.5"
• Crimping Force:15 Tons (135 kN)
• Head Rotation: 350º
• Type: Die Style Crimper
• Wire Size: 8 AWG - 1500 kcmil Cu
• Wire Size: 8 AWG - 1250 kcmil Al
• Crimping Force: 30000 lbs (135 kN)
• Crimping Capacity: 1500 kcmil (MCM) Copper
• Crimping Capacity: 1250 kcmil (MCM) Al
• Connector Type: Color-Coded Lugs and Splices
• Handle Type: Pistol Style with Over Molded Rubber Grip
• Min Operating Temperature: 1 F / -17.22222 C
• Max Operating Temperature: 104 F / 40 C
• Color: Green
• Shape: Pistol
• Materials: Steel, Plastic, Aluminum
• Power Source: Battery Powered
• Capacity Max: 15" / 381 mm
• Connectivity-1 (Bluetooth, WiFi): Yes
• Motor Type: DC Brushed Permanent Magnet
• Voltage: 18V
• Battery Composition: Lithium Ion
• Battery: 18V, 4.0 Ah
• Batteries Included: Yes
• Batteries Required: Yes
• Charger: 12V
• Sub Brand: Gator
• Application: 15 Ton Crimping
• Standard: C/US UL Classified
• Weight: 15.9 lbs
The EK1550SLX crimping tool is a battery-powered, C-head and pistol grip configured tool intended to crimp aluminum and copper connectors onto electrical cable.
