Description
Greenlee EK410LX11 Description

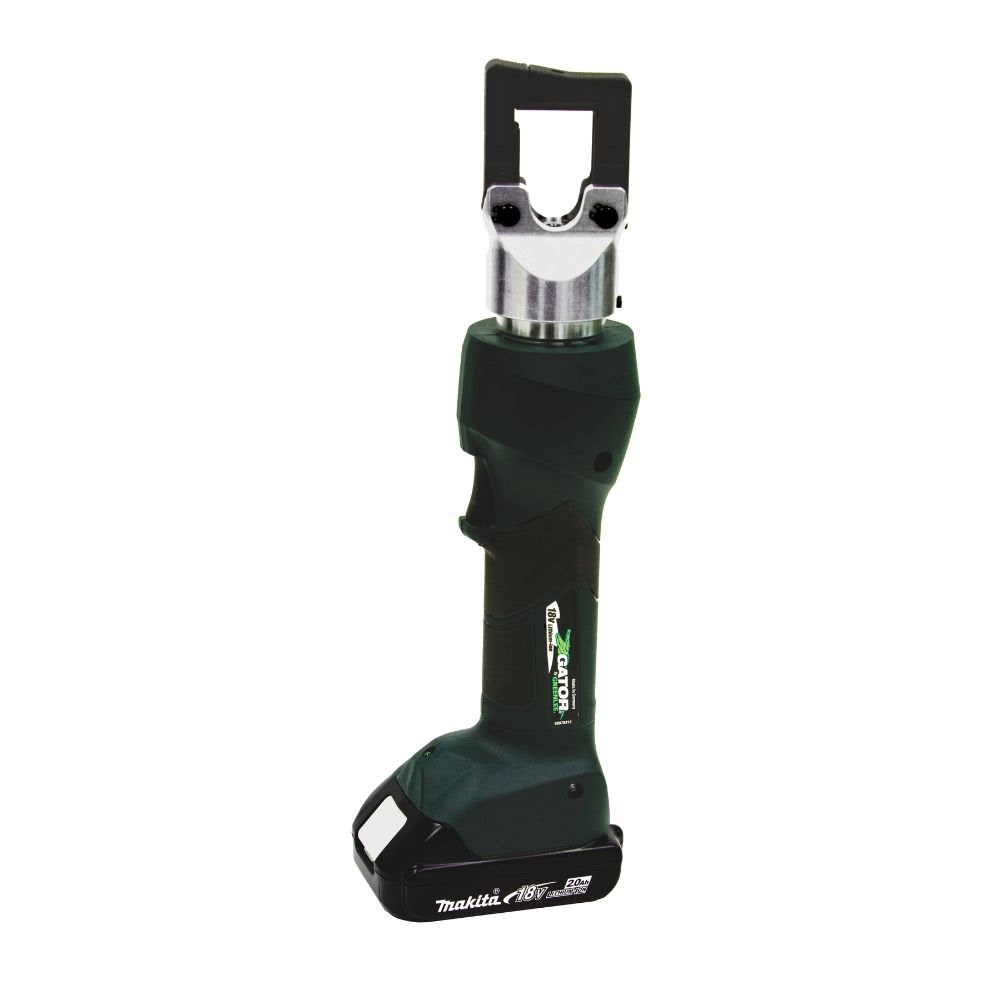

The Greenlee EK410LX is a hand-held, self-contained crimping tool intended to crimp copper and aluminum cable. It features Bluetooth connectivity, which is enabled through the Gator Eye app.
Greenlee EK410LX11 Includes
- (1) Crimping tool
- (2) 2.0 Ah Batteries
- (1) 120V Charger
- (1) Case
Greenlee EK410LX11 Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- LED light provides the operator with the battery charge and tool maintenance status
- In Line tool style is light weight and very easy to control
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
Greenlee EK410LX11 Specifications
Type | Die Style Crimper |
Application | 4 Ton Crimping |
Standard | C/US UL Listed |
Wire Size | 8 AWG - 300 kcmil Cu, 8 AWG - 2/0 kcmil Al |
Overall Length | 13.25" (337mm) |
Crimping Force | 7900 lbs (35 kN) |
Crimping Capacity | 300 kcmil (MCM) Copper, 2/0 AWG Al |
Connector Type | Color-Coded Lugs and Splices |
Handle Type | In-Line Style with Over Molded Rubber Grip |
Sub Brand | Gator |
